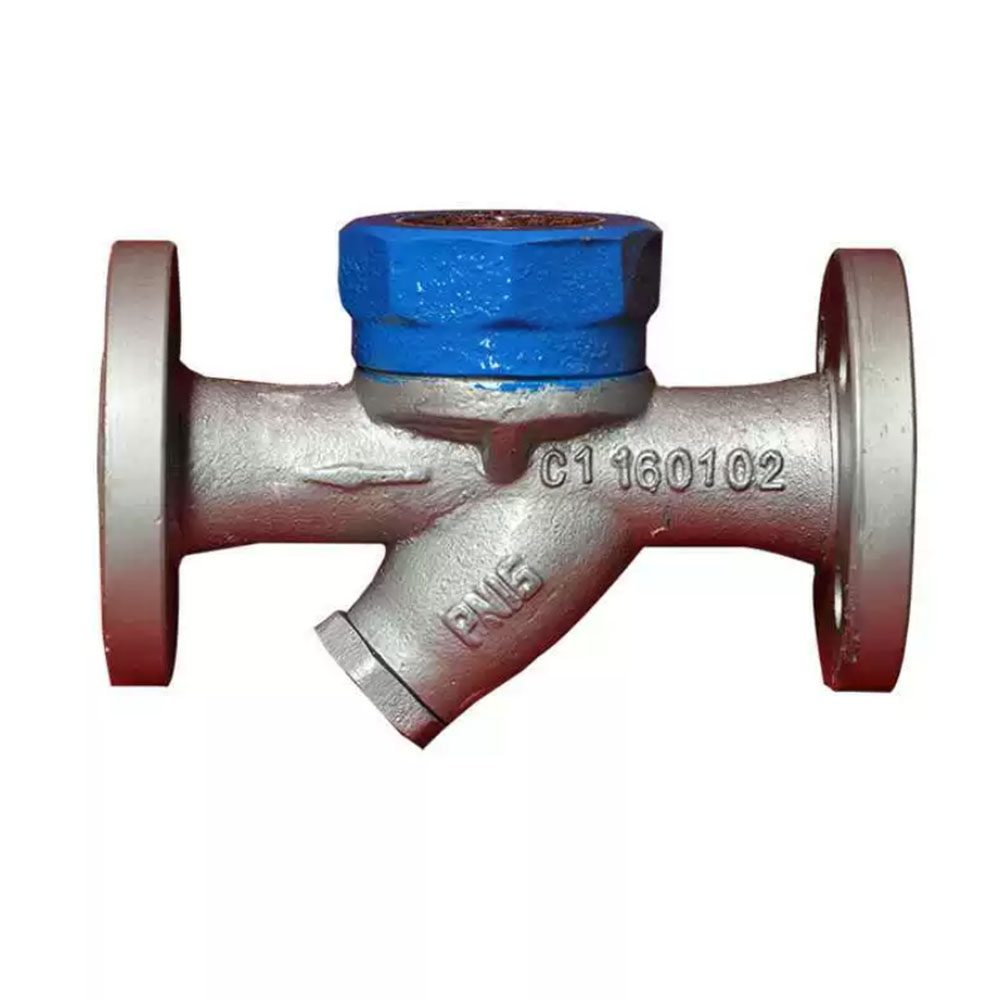

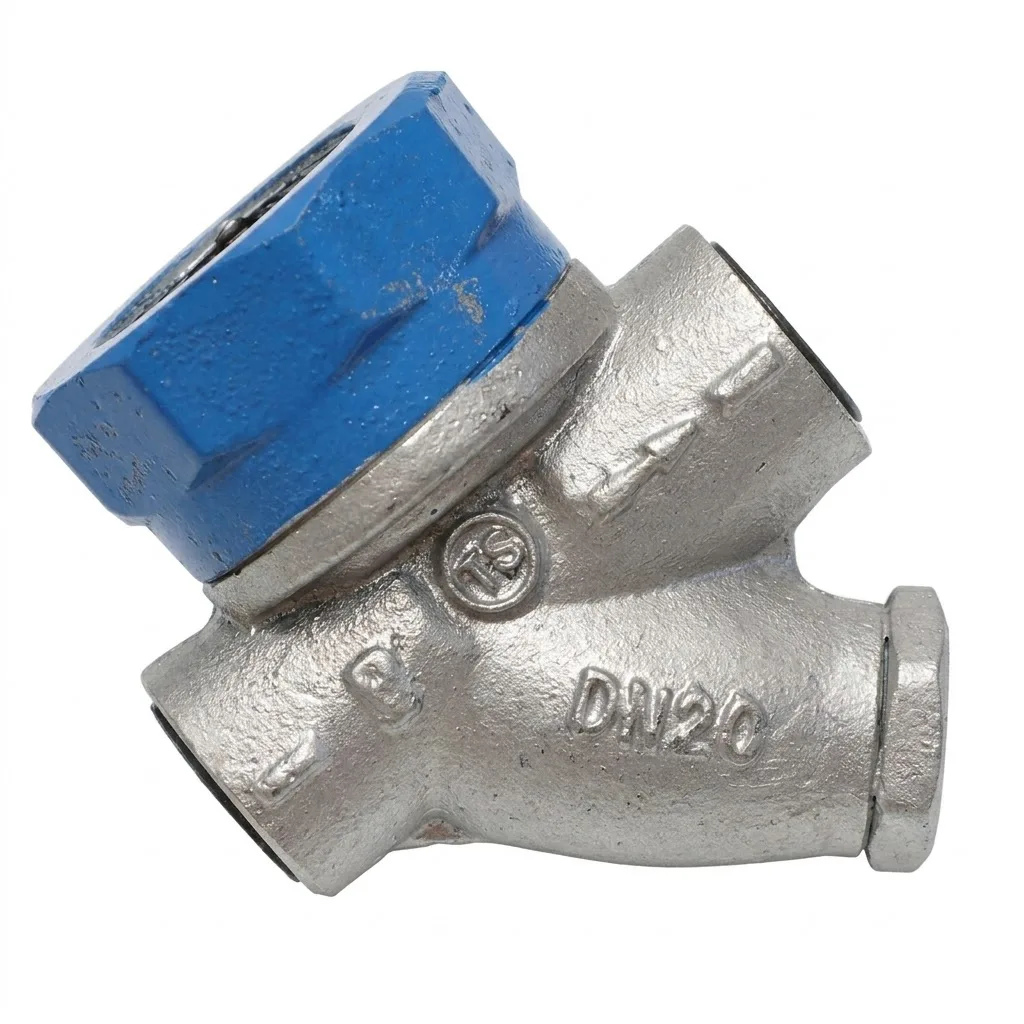

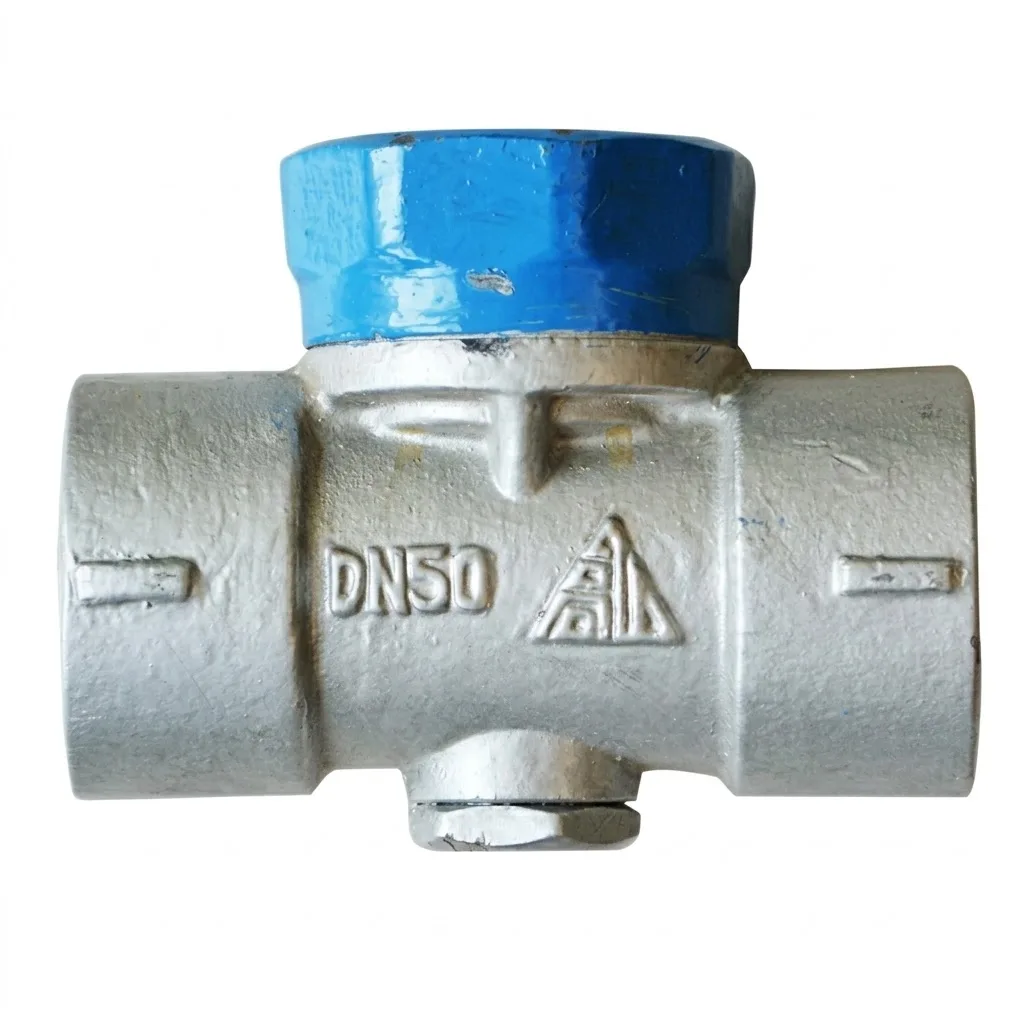

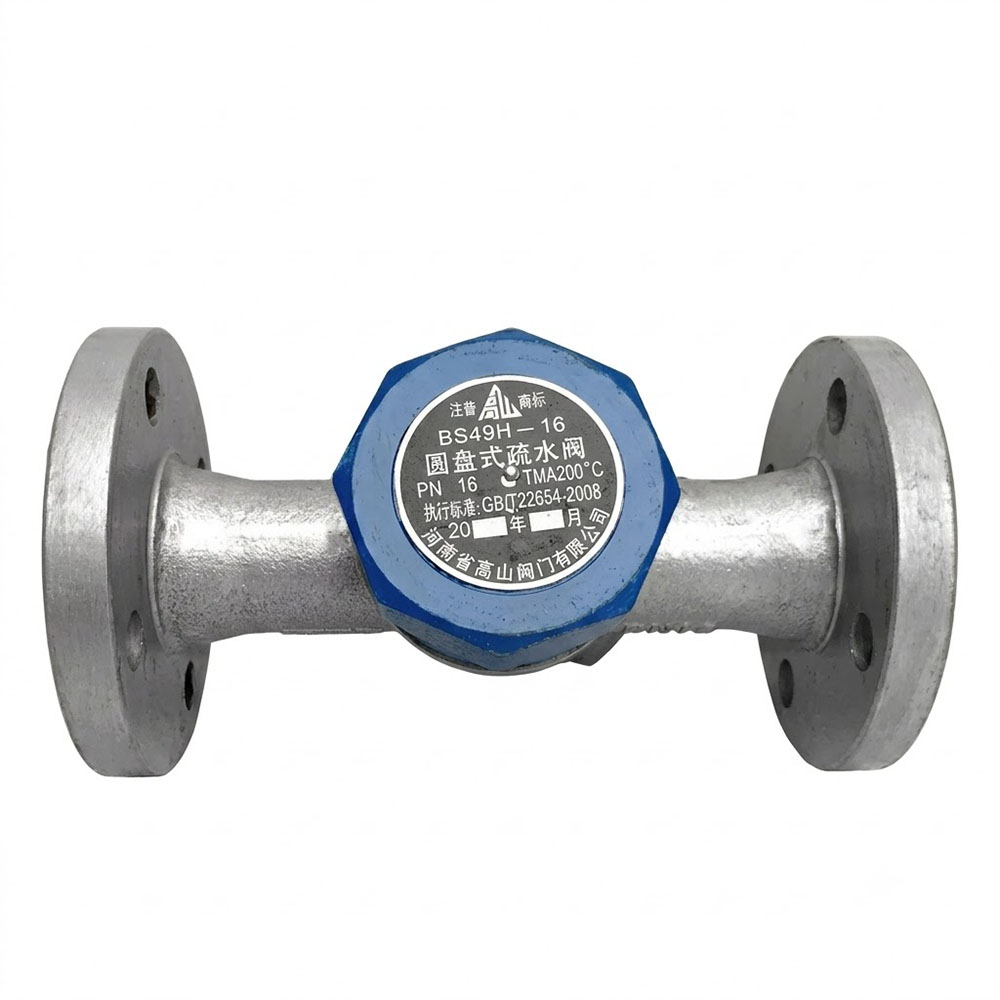

Thermodynamic Steam Trap
Model: BS19H-16/25 (threaded) · BS49H-16/25 (flanged)
Disc type · one moving part · steam mains & drip legs
The best-selling steam trap in Gaoshan’s line. It uses only one moving part — a hardened stainless steel disc that cycles open and closed on the Bernoulli fluid dynamic effect. No bellows, floats, or levers to wear out, so it holds up to water hammer and works in almost any mounting orientation.
Typical Industries
Steam mains & headers
Steam tracing lines
Outdoor steam piping
Petrochemical & refinery
Power generation
Specifications
| Pressure class | PN16 (1.6 MPa) / PN25 (2.5 MPa) |
| Max temperature | 250°C |
| Body material | WCB cast steel · stainless steel disc & seat |
| Connection | DN15–DN50, threaded (NPT/BSPT) or flanged (RF) |
| Discharge type | Intermittent — cycles several times per minute |

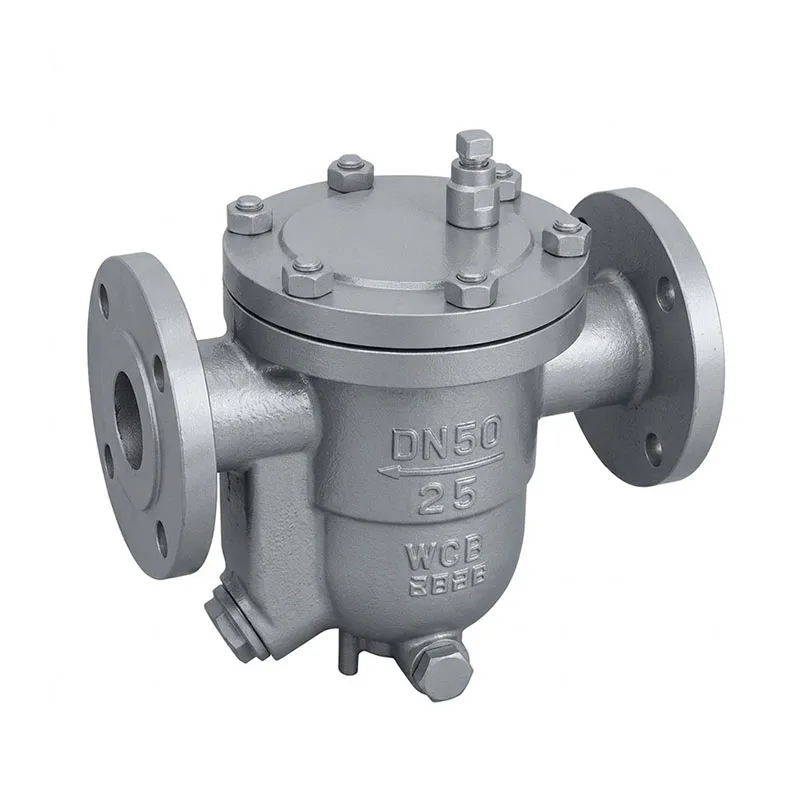

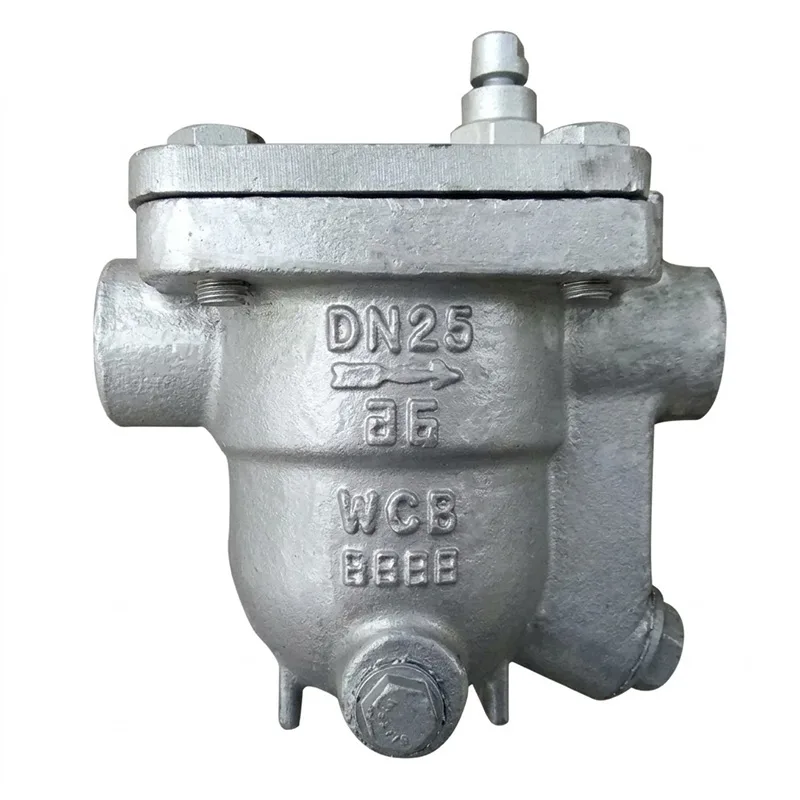

Free Float Ball Steam Trap
Model: CS11H (threaded) · CS41H (flanged) — PN16/PN25/PN40
Continuous discharge · high pressure to PN40
A precision-ground stainless steel float ball rises and falls with the condensate level, giving smooth, continuous drainage instead of intermittent cycling — no water accumulation, maximum heat transfer. The only Gaoshan trap series rated to PN40 (4.0 MPa) and 425°C, with a built-in Y-series air vent for both cold and hot non-condensable gases.
Typical Industries
Heat exchangers
Condensate recovery systems
Air heater coils
Sterilizers & autoclaves
High-pressure process steam
Specifications
| Pressure class | PN16 / PN25 / PN40 (up to 4.0 MPa) |
| Max temperature | 300°C (PN16) / 425°C (PN25 & PN40) |
| Body material | QT450-10 ductile iron (PN16) / WCB cast steel (PN25, PN40) |
| Connection | DN15–DN50, threaded (NPT/BSPT) or flanged (RF) |
| Discharge type | Continuous — modulated by float buoyancy |

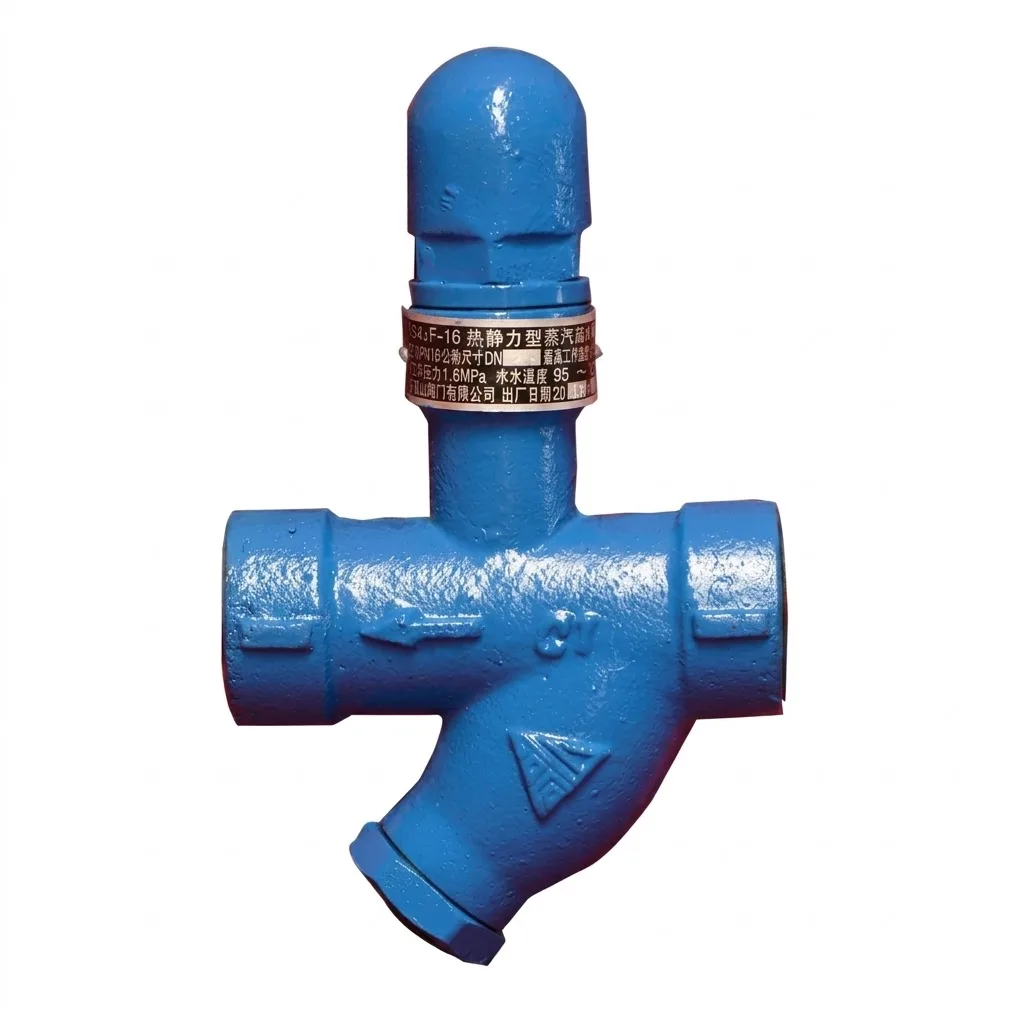

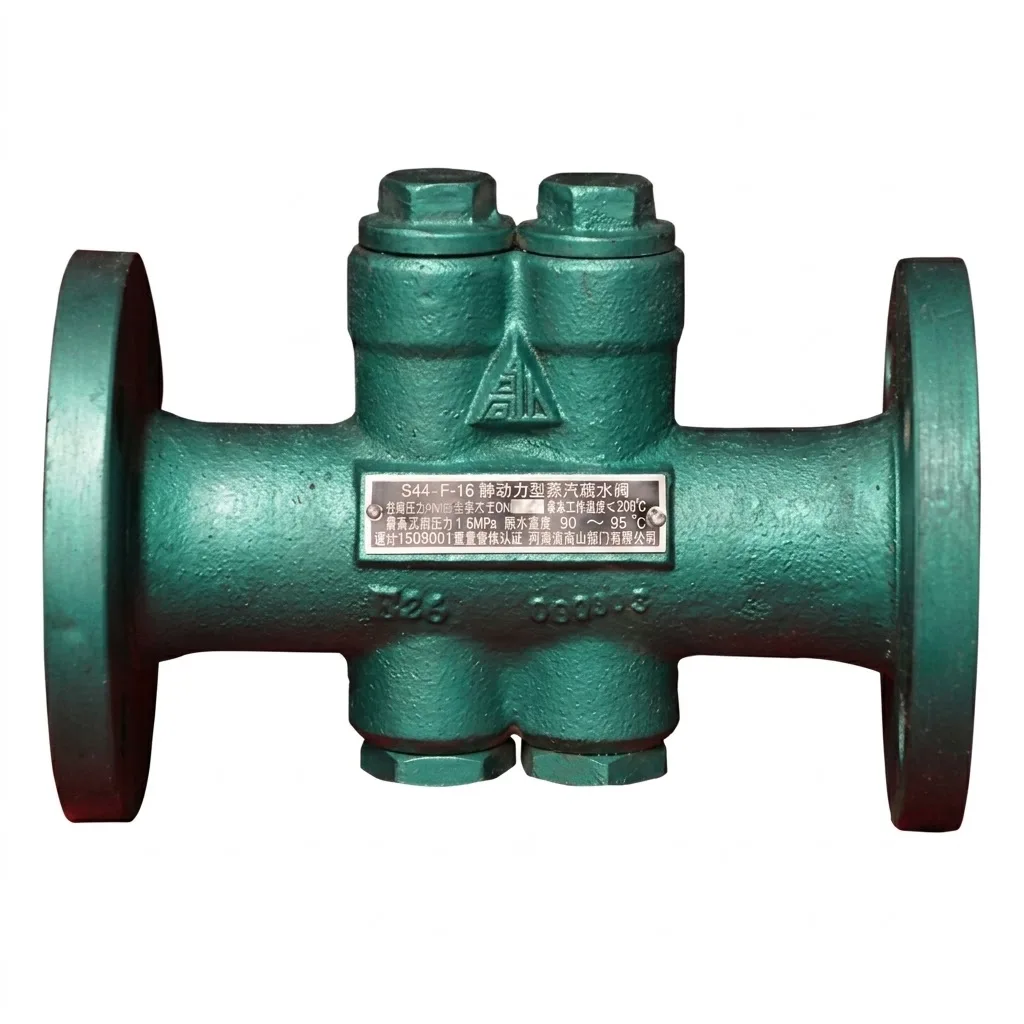

Thermostatic Steam Trap
Model: S44F-16 (flanged) · S14F-16 (threaded)
Bellows type · lowest steam loss · freeze protection
A liquid-expansion bellows element senses condensate temperature and closes tight before live steam can escape — rated at ≤0.5% no-load steam loss, among the lowest in the industry. It stays open when cold, so the trap drains completely on shutdown and needs no extra freeze protection outdoors.
Typical Industries
Petrochemical & refinery
Rubber & tire manufacturing
Pharmaceutical production
HVAC steam heating
Food & beverage processing
Specifications
| Pressure class | PN16 (1.6 MPa) |
| Max temperature | 203°C |
| Discharge temperature | Type 01: 90–95°C · Type 02: 95–135°C |
| No-load steam loss | ≤0.5% |
| Connection | DN15–DN50, threaded (NPT/BSPT) or flanged (RF) |
Non‑standard Customization
Need A Non-Standard Configuration? We Build Those Too
Special connection types, non-standard pressure or temperature ratings, alternate body materials, and third-party certifications for your specific project — send us your working conditions and we’ll quote a custom-engineered trap.
24-Hour Reply Guaranteed
Get timely responses from our professional sales team within 24 hours, to resolve your inquiries and project questions without delay.
On-Time Delivery, Every Order
We stick to confirmed production schedules and guarantee punctual shipment for every single order to keep your project on track.
Engineer-Reviewed For Your Conditions
Our professional engineers check specifications one by one, customizing suitable valve solutions matching your actual working conditions.
