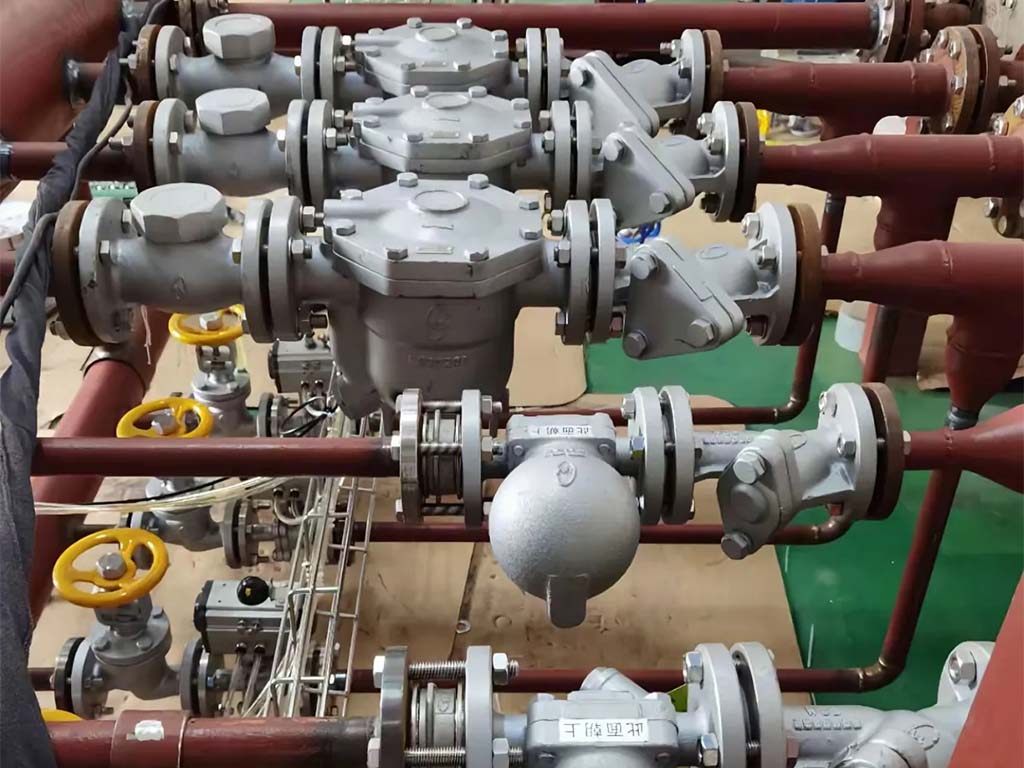

How Working Environment Affects Steam Trap Performance

In industrial steam systems, the steam trap functions as a silent guardian — it automatically discharges condensate and non-condensable gases while preventing live steam loss, ensuring the system operates at peak thermal efficiency. However, one critical variable is often overlooked: the working environment plays a decisive role in steam trap performance and service life. Selecting the right steam trap for your specific operating conditions — and understanding how environmental factors impact reliability — is essential for any facility manager or maintenance engineer.

At Gaoshan Valve, we have been engineering steam traps and industrial valves since 1975. Our solutions are deployed across chemical plants, refineries, power stations, food processing facilities, and HVAC systems in over 20 countries. This article examines the four key environmental factors — temperature, pressure, impurities, and vibration — and provides actionable guidance for maximizing steam trap performance in any application.

1. Temperature: Thermal Extremes and Steam Trap Reliability

Temperature is the most pervasive environmental factor affecting steam trap performance. Both high and low extremes introduce distinct failure mechanisms that maintenance teams must anticipate.

High-Temperature Operation

In superheated steam systems or high-temperature process applications, steam trap internals — particularly sealing elements, gaskets, and valve seats — are subjected to thermal expansion. When dissimilar materials within the trap expand at different rates, sealing surfaces lose integrity, resulting in live steam leakage and measurable energy waste. Prolonged exposure to temperatures above the trap’s rated threshold also accelerates elastomer degradation and metal fatigue, progressively shortening service intervals.

Low-Temperature and Freezing Conditions

In outdoor installations, unheated plant areas, or during seasonal shutdowns, condensate retained inside a steam trap can freeze. Ice expansion generates enormous internal pressure — often exceeding the tensile strength of cast iron bodies — leading to catastrophic valve body cracking. Even before failure, frozen condensate blocks the discharge orifice, rendering the trap inoperable and causing system waterlogging.

Solution: For outdoor or low-temperature applications, specify traps with integral freeze protection, install proper insulation (never insulate the trap body itself — only upstream/downstream piping), and consider thermostatic traps with sub-cooling capability that discharge condensate below saturation temperature.

Gaoshan Valve Application: Our thermodynamic steam traps feature high-grade stainless steel internals rated for continuous operation up to 425°C (ASTM A216 WCB cast steel) and 300°C (ductile iron). For corrosive high-temperature environments, we offer full stainless steel (CF8/CF8M) body construction.

2. Pressure: Matching Trap Capacity to System Dynamics

Pressure is the driving force behind condensate discharge — but it can also be the source of premature trap failure when system dynamics are not properly accounted for.

High-Pressure Environments

In high-pressure steam mains (PN25/PN40/PN63 and above), the differential pressure across the trap imposes significant mechanical stress on the valve mechanism. If the maximum operating pressure (PMO) of the selected trap is exceeded, the disc, float, or thermostatic element may experience permanent deformation, seat damage, or fatigue cracking. High-pressure conditions also demand precision-machined sealing surfaces — even minor imperfections become leak paths under elevated differential pressure.

Low-Pressure and Vacuum Condensate Systems

At the other extreme, low-pressure or vacuum return systems may lack sufficient differential pressure to drive condensate through the trap orifice effectively. The result is waterlogging — condensate accumulates in the heat exchanger or steam space, reducing heat transfer coefficient and increasing the risk of destructive water hammer. This is particularly common during cold start-up or when modulating control valves throttle steam pressure below the trap’s minimum operating differential.

Solution: Always select a steam trap whose pressure rating (PN class) and PMO bracket your system’s full operating range — including start-up, normal operation, and shut-down conditions. Apply a safety factor of 1.5× on the maximum differential pressure for intermittent service.

Gaoshan Valve Application: Our float-type and thermodynamic steam traps are available in pressure classes from PN16 through PN63, with PMO ratings clearly marked on every nameplate. Each trap is hydrostatically shell-tested at 1.5× rated pressure and seat-tested at 1.1× rated pressure per API 598 / ISO 5208 before shipment.

3. Impurities and Contamination: The Silent Performance Killer

Steam system impurities — whether carried by the steam/condensate flow or present in the ambient environment — are responsible for more steam trap failures than any other single cause. Understanding the contamination profile of your application is essential for proper trap selection.

Particulate Contamination (Internal)

New and aging steam systems alike generate particulate contaminants: rust flakes, pipe scale, welding slag, joint compound debris, and boiler carryover solids. These particles travel with the steam/condensate flow and can:

• Block the valve orifice — preventing condensate discharge and causing system flooding
• Score and wire-draw sealing surfaces — creating permanent leak paths that waste steam
• Jam the float mechanism in mechanical traps — locking the trap in either the open or closed position
• Interfere with thermostatic element movement — degrading response accuracy

Corrosive Environments (External and Internal)

In chemical processing plants, petroleum refineries, pulp and paper mills, and coastal/marine installations, corrosive media — acids, caustics, chloride-laden salt spray, hydrogen sulfide — attack valve body materials and internal components. Corrosion mechanisms include uniform thinning, pitting, crevice corrosion, and stress corrosion cracking. The result is compromised pressure containment, leaking gasket faces, and dramatically shortened replacement cycles.

Solution: Install a Y-type strainer with blowdown valve upstream of every steam trap — this is the single most cost-effective reliability improvement you can make. For corrosive environments, specify traps with stainless steel (CF8/304 or CF8M/316) bodies and internals. Gaoshan Valve’s steam trap product line includes full stainless steel options for the most demanding chemical and offshore applications.

4. Vibration: The Overlooked Environmental Stressor

Vibration is the most frequently underestimated threat to long-term steam trap reliability. Unlike temperature or pressure — which are typically considered during initial trap selection — vibration is rarely accounted for until failures begin to accumulate.

Common Vibration Sources

In industrial facilities, steam traps are exposed to continuous or intermittent vibration transmitted through piping from nearby rotating equipment: centrifugal pumps, reciprocating compressors, steam turbines, cooling tower fans, and heavy material handling machinery. Piping systems themselves act as efficient vibration transmission paths — a pump located 50 meters away can still induce damaging resonance at a trap location.

Failure Mechanisms Induced by Vibration

• Threaded connection loosening — the most common consequence, leading to steam leaks at union joints and nipple connections
• Disc flutter and fatigue in thermodynamic traps — the free-floating disc loses its proper seating rhythm, chattering against the seat and accelerating wear
• Gasket compression set and seal extrusion — dynamic loading degrades static seals over time
• Float arm bending and pivot wear in mechanical traps — misalignment causes the float to bind or the valve head to seat improperly

Solution: Install vibration-dampening pipe supports and flexible metallic hose connectors to isolate traps from system vibration. Use flanged connections instead of threaded connections in high-vibration zones. Specify thermodynamic traps with hardened stainless steel discs and seats for inherently vibration-resistant operation — a key advantage of the thermodynamic design for challenging industrial environments.

5. Material Selection: Engineering the Right Trap for Your Environment

The single most important decision in steam trap specification is material selection. A trap that performs flawlessly in a low-pressure heating system may fail within weeks in a high-pressure, corrosive process environment — simply because the materials are mismatched to the conditions.

Body Materials Comparison:

• Cast Iron (GG25) — Max Temp: ~200°C — Best for: Low-pressure steam heating, HVAC condensate, non-shock service
• Ductile Iron (GGG40) — Max Temp: ~300°C — Best for: Medium-pressure industrial steam, process heat exchangers
• Cast Steel (WCB) — Max Temp: ~425°C — Best for: High-pressure/high-temperature steam mains, power generation
• Stainless Steel (CF8/CF8M) — Max Temp: ~425°C+ — Best for: Corrosive chemical service, food-grade processing, offshore/marine

Internal component material selection — valve seats, discs, floats, thermostatic bellows, gaskets — is equally critical. Gaoshan Valve equips all steam traps with stainless steel (304/316) internals as standard, providing superior corrosion resistance and extended service life compared to conventional carbon steel or brass internals.

6. Maintenance Best Practices for Maximum Steam Trap Life

Even a perfectly specified steam trap will underperform without a structured maintenance program. Regular inspection and preventive maintenance are the most cost-effective ways to maximize return on your steam trap investment.

• Quarterly Ultrasonic or Thermal Inspection: Use non-invasive ultrasonic detectors or infrared thermography to assess trap condition without shutting down the system. A properly functioning trap produces a distinct cyclic sound pattern; continuous hissing or silence indicates a problem.
• Strainer Maintenance: Clean or replace upstream Y-type strainer screens during each inspection cycle. A clogged strainer starves the trap of flow and can cause waterhammer upstream.
• Scheduled Seal and Gasket Replacement: Replace body gaskets, cover gaskets, and bolting during planned shutdowns — not after a leak develops. This is especially critical in high-temperature service where gaskets take a compression set over time.
• Condensate Load Verification: Periodically verify that actual condensate load matches the trap’s design discharge capacity. Process changes — increased throughput, new heat exchangers — can alter condensate load beyond the original trap specification.
• Maintain a Steam Trap Management Log: Document every trap in the facility with a unique ID, location, type, inspection date, condition assessment, and corrective action taken. This data drives predictive maintenance scheduling and lifecycle cost analysis.

1. Summary: Environment-Aware Steam Trap Specification

The working environment — temperature, pressure, contamination, and vibration — is not just background context for steam trap operation; it is the primary determinant of trap reliability, efficiency, and service life. A disciplined, environment-aware approach to trap selection and maintenance delivers measurable results:

• Reduced steam loss and energy cost
• Extended mean time between failures (MTBF)
• Minimized unplanned downtime
• Lower total cost of ownership over the trap lifecycle

When you combine the right trap type and material for your specific environment with a consistent maintenance program — and source from a manufacturer with certified quality systems — your steam traps will deliver stable, efficient performance throughout their service life. After all, only in a well-understood working environment can a steam trap fully realize its potential, keeping your equipment rock-solid and your operations running smoothly.

About Gaoshan Valve — Your Trusted Steam Trap Manufacturer

Gaoshan Valve Co., Ltd., founded in 1975, is one of China’s earliest valve manufacturers to receive a National Special Equipment Manufacturing License. With 50 years of industry experience, we have grown into a comprehensive enterprise integrating R&D, production, and sales of industrial valves — serving over 10,000 customers across 20+ countries.

Company Facts:

• Founded: 1975
• Production Area: 120,000 m² (building area: 50,000 m²)
• Employees: 580+
• Production Equipment: 360+ machines (including 60 CNC lathes)
• Workshops: 10 (cast steel, cast iron ×2, machining, assembly, painting, tooling, etc.)
• Export Markets: USA, Canada, South Korea, Ecuador, and more

Certifications:

• ISO 9001:2015 — Quality Management (since 1998)
• ISO 14001:2015 — Environmental Management
• ISO 45001:2018 — Occupational Health & Safety
• API Certified — American Petroleum Institute (since 2002)
• CE Marked (PED Module H)
• National Special Equipment Manufacturing License (A1/B Grade, since 2003)
• High-Tech Enterprise — Henan Province
• AAA Credit Rating — Quality Service & Integrity
• Five-Star After-Sales Service Certification

Our Steam Trap Product Range:

• Thermodynamic Steam Traps — for high-pressure/temperature mains and tracing
• Thermostatic Steam Traps — for sub-cooled condensate discharge and freeze protection
• Float & Thermostatic (F&T) Traps — for process heat exchangers requiring continuous drainage
• Full Stainless Steel Options — for corrosive chemical, food-grade, and offshore applications

Corporate Philosophy: “Quality is superior, service is paramount.” Every Gaoshan steam trap is 100% inspected and pressure-tested before shipment, backed by 24/7 technical support and a global network of distribution partners.

Contact our engineering team today: https://gaoshanvalves.com/contact-us/

Frequently Asked Questions

Q1: What are the main factors that affect steam trap performance?

The four primary environmental factors are temperature (thermal expansion, freezing), pressure (over-pressure damage, low-pressure waterlogging), impurities (particulate blockage, corrosion), and vibration (loosened connections, internal wear). Proper selection, installation, and maintenance mitigate these risks.

Q2: How does temperature affect a steam trap’s operation?

High temperatures cause thermal expansion of internal components, which can compromise sealing and cause steam leakage. Low temperatures may cause condensate to freeze inside the trap, blocking flow and potentially cracking the valve body. Selecting materials with appropriate temperature ratings is critical.

Q3: Why is material selection important for steam traps in harsh environments?

Different environments demand different materials. Stainless steel (304/316) is ideal for corrosive or high-temperature applications. Cast steel (WCB) handles high pressure and temperature well. Ductile iron offers a cost-effective solution for medium-duty applications. Matching the material to the environment dramatically extends service life.

Q4: How often should steam traps be inspected?

Industry best practice recommends quarterly inspections for critical process traps and semi-annual inspections for general service traps. High-contamination or high-vibration environments may require more frequent checks. A steam trap management program with regular ultrasonic or thermal testing is strongly advised.

Q5: What certifications should a reliable steam trap manufacturer have?

A reputable manufacturer should hold ISO 9001 (quality management), API (for petroleum/industrial applications), CE marking (for European markets), and a National Special Equipment Manufacturing License. Gaoshan Valve holds all of these certifications, plus ISO 14001 and ISO 45001.

Q6: Can vibration really damage a steam trap?

Yes. Continuous vibration can loosen threaded connections, cause fatigue wear on internal components (especially thermodynamic disc traps), degrade gaskets and seals, and misalign float mechanisms. Installing vibration-dampening supports and flexible connectors significantly reduces this risk.
