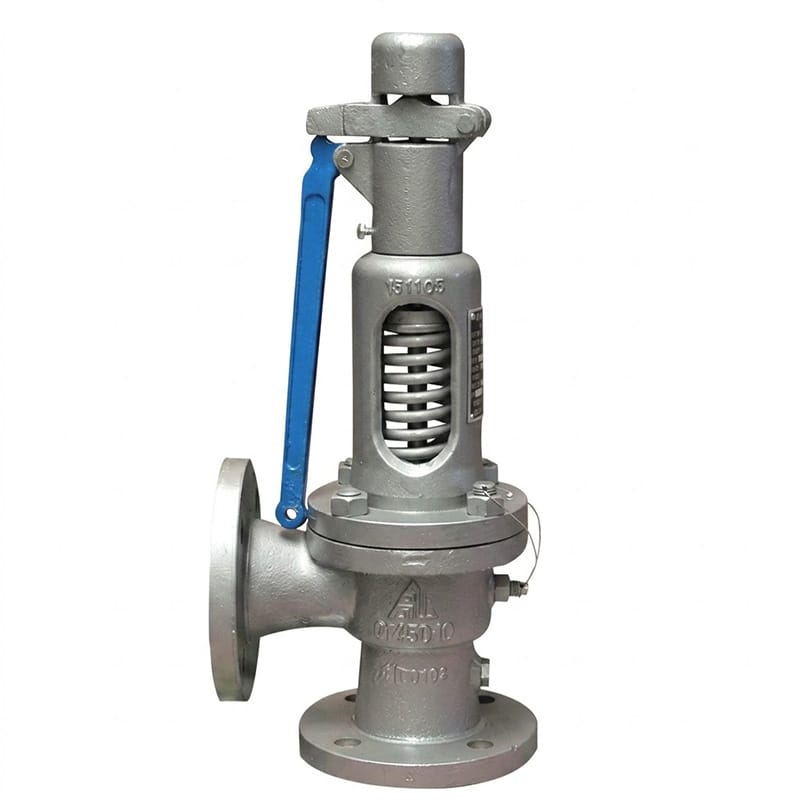

A47H Spring Low Lift Safety Valve – PN16/PN25, DN32-DN150
The A47H spring low lift safety valve provides automatic overpressure protection for steam, water, and non-corrosive piping systems. Available in PN16 and PN25 pressure ratings, with a working temperature up to 300°C.
- Size range: DN32–DN150
- Body options: WCB cast steel or ductile cast iron
- Models: A47H-16C / A47H-16Q / A47H-25
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
The A47H spring low-lift safety valve is the workhorse flanged relief valve for steam and water systems to 300°C: a compact low-lift disc, 2Cr13 stainless trim and calibrated 50CrVA spring give reliable, proportional overpressure protection on boilers and vessels. PN16/PN25, DN32–DN150.
- Flanged spring-loaded safety valve, low-lift for compact proportional relief
- Open bonnet — direct atmospheric vent
- 2Cr13 stainless disc and seat
- PN16/PN25, DN32–DN150, to 300°C
- WCB cast steel or QT450-10 ductile iron body; 50CrVA calibrated spring
- CE-marked; China Safety Valve Manufacturing License; designed & tested to GB/T 12243
Product Overview
The A47H is a flanged spring-loaded safety valve for steam and water at temperatures to 300°C. When system pressure exceeds the set point the spring-loaded disc lifts proportionally to vent the excess, and reseats automatically when pressure normalizes — no manual reset.
The open-bonnet design vents directly to atmosphere — the simple, economical choice for steam and water where the discharge is safe to release at the valve.
Body material follows the duty: WCB cast steel for higher temperature and pressure, QT450-10 ductile iron as the cost-effective option for standard service. The 2Cr13 sealing surfaces and 2Cr13 internals hold a tight seal through thousands of cycles, and the 50CrVA spring is calibrated to the set pressure and sealed before dispatch.
Key Advantages
Compact Proportional Relief
The low-lift disc opens proportionally with minimal travel, giving reliable protection in a small envelope with low seat wear.
Simple Atmospheric Vent
Open-bonnet venting is the economical, maintenance-light choice where the discharge is safe to release at the valve.
2Cr13 Sealing for Cycle Life
2Cr13 stainless trim gives durable, corrosion-resistant sealing.
Calibrated 50CrVA Spring
The alloy spring holds the set pressure consistently and reseats tightly; adjustable screw allows on-site calibration within the rated range.
Two Body Materials
WCB cast steel for strength and temperature; QT450-10 ductile iron for cost-effective standard duty.
Fine Pressure Gradation
Multiple working-pressure steps within PN16/PN25 ensure an exact match to the system set pressure, without compromising safety margin.
Pressure Test Data & Set Pressure Range
| Nominal Pressure PN | Shell Test Pressure (MPa) | Working Pressure Range (MPa) |
|---|---|---|
| PN16 | 2.4 | 0.1 ∼ 0.14 |
| PN16 | 2.4 | 0.14 ∼ 0.2 / 0.2 ∼ 0.3 / 0.3 ∼ 0.45 |
| PN16 | 2.4 | 0.45 ∼ 0.65 / 0.65 ∼ 0.9 |
| PN16 | 2.4 | 0.9 ∼ 1.2 / 1.2 ∼ 1.6 |
| PN25 | 3.8 | 1.6 ∼ 2.0 |
| PN25 | 3.8 | 2.0 ∼ 2.5 |
| Working Temperature: ≤ 300°C | Applicable Medium: Steam, Water, Non-Corrosive Media | Working Temperature: ≤ 300°C | Applicable Medium: Steam, Water, Non-Corrosive Media | Working Temperature: ≤ 300°C | Applicable Medium: Steam, Water, Non-Corrosive Media |
Materials for Main Parts
| Part Name | Material |
|---|---|
| Body | WCB Carbon Steel / QT450-10 Ductile Cast Iron |
| Disc, Seat Ring, Adjusting Ring, Valve Guide, Stem | 2Cr13 Stainless Steel |
| Bonnet Cap, Wrench | WCB / Ductile Cast Iron |
| Spring | 50CrVA Alloy Spring Steel |
Dimensions & Weight
| DN (mm) | d0 (mm) | L (mm) | D (mm) | K (mm) | g (mm) | b (mm) | Z-φd | D1 (mm) | K1 (mm) | g1 (mm) | b1 (mm) | D1′ (mm) | Z’-φd’ | H (mm) | H1 (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 | 25 | 115 | 140 | 100 | 78 | 18 | 4-φ18 | 135 | 100 | 78 | 18 | 32 | 4-φ18 | 282 | 100 | 14 |
| 40 | 32 | 120 | 150 | 110 | 88 | 18 | 4-φ18 | 150 | 110 | 88 | 18 | 40 | 4-φ18 | 355 | 110 | 16 |
| 50 | 40 | 135 | 165 | 125 | 102 | 18 20▴ | 4-φ18 | 165 | 125 | 102 | 18 | 50 | 4-φ18 | 360 | 120 | 18 |
| 65 | 50 | 140 | 185 | 145 | 122 | 18 22▴ | 4-φ18 8-φ18▴ | 185 | 145 | 122 | 18 | 65 | 4-φ18 | 370 | 125 | 24 |
| 80 | 65 | 170 | 200 | 160 | 138 | 20 24▴ | 8-φ18 | 200 | 160 | 138 | 20 | 80 | 8-φ18 | 385 | 135 | 38 |
| 100 | 80 | 170 | 220 235▴ | 180 190▴ | 158 162▴ | 20 24▴ | 8-φ18 8-φ22▴ | 220 | 180 | 158 | 20 | 100 | 8-φ18 | 580 | 160 | 58 |
| 150 | 125 | 220 | 285 300▴ | 240 250▴ | 212 218▴ | 22 28▴ | 8-φ22 8-φ26▴ | 265 | 240 | 212 | 22 | 150 | 8-φ22 | 633 | 210 | 88 |
Inlet flange columns D/K/g/b/Z-φd; outlet flange columns D1/K1/g1/b1/D1′/Z′-φd. Marked values differ for PN25. Certified drawings issued with the quotation; state set pressure when enquiring.
Gaoshan Safety Valve Series — Which Model
| Model | Lift | Bonnet | Seal | DN Range | Best For |
|---|---|---|---|---|---|
| A47H | Low lift | Open | 2Cr13 | DN32–DN150 | General steam / water relief |
| A48Y | Full lift | Open | Stellite | DN32–DN150 | Boilers, large vessels — high capacity |
| A41H | Low lift | Sealed | 2Cr13 | DN40–DN100 | Water / air / oil — piped discharge |
| A42Y | Full lift | Sealed | Stellite | DN40–DN100 | Gas / petroleum — max safety + capacity |
This page is the A47H. For the other lift/bonnet/seal combinations see the series table and the safety valve series.
Structure Drawing
Design, Testing and Reference Standards
- CE-marked and manufactured under the China Safety Valve Manufacturing License; designed and tested to GB/T 12243.
- EN ISO 4126 and, for US codes, ASME BPVC Section VIII compliance available on request — state the code your project is inspected against.
- Material certificates to EN 10204 3.1 and a set-pressure certificate supplied with each calibrated valve.
Installation & Maintenance Guidelines
- Mount vertical at the top of the protected volume: no isolating valve upstream; the valve must see system pressure directly.
- Keep the vent clear: ensure the open-bonnet discharge path is unobstructed and directed away from personnel.
- Never adjust in service: the set pressure is factory-calibrated and sealed; recalibrate at the interval your code requires.
- Test periodically: bench-test or raise to set at the inspection interval to confirm lift and reseat.
- Protect from condensate on steam: allow drainage so the valve is not waterlogged.
Application Fields
The A47H protects steam boilers; pressure vessels; steam and hot water lines; power and process plant. Anywhere a trapped volume can exceed its rated pressure, the spring safety valve is the last line of defence.
What We Need to Quote Your A47H Valves
- Size and pressure class: DN32–DN150, PN16/PN25.
- Set pressure (MPa): the key parameter — state it exactly.
- Medium and temperature: steam and water, to 300°C.
- Body material: WCB cast steel or QT450-10 ductile iron.
- Bonnet: open bonnet; sealed version = A41H/A42Y.
- Code: GB/T 12243 standard; EN ISO 4126 / ASME on request.
- Documentation: EN 10204 3.1 + set-pressure certificate.
Frequently Asked Questions
Sealed (enclosed) bonnet or open bonnet – which do I need?
A sealed bonnet (A41H/A42Y) routes the discharge through a pipe to a safe point – required for hazardous, toxic or valuable media and indoor plant. An open bonnet (A47H/A48Y) vents to atmosphere – the economical choice for steam and water where that is safe. This page is the open-bonnet A47H.
Full lift or low lift – which do I need?
Full lift (A48Y/A42Y) opens to full travel for maximum discharge – choose it for boilers and large vessels where a rapid overpressure must be vented. Low lift (A47H/A41H) opens proportionally in a smaller envelope for modest relief needs. The A47H is low-lift.
What does the Stellite seat buy me?
Stellite (cobalt-based) hard-facing gives far better wear, erosion and corrosion resistance than plain 2Cr13 under repeated high-energy actuation – the choice for steam boilers and cycling service. 2Cr13 is fine for general steam/water.
How is the set pressure calibrated?
Each valve is calibrated to your stated set pressure and sealed before dispatch, with a set-pressure certificate. The adjusting screw allows on-site calibration within the rated range, but never adjust it in service.
Can it be used on corrosive media?
The A47H covers steam and water. For acids and aggressive fluids use the stainless A28Y/A27Y threaded series or a stainless flanged variant – tell us the medium.
What standards does it meet?
CE-marked and manufactured under the China Safety Valve Manufacturing License, designed and tested to GB/T 12243, with EN ISO 4126 and ASME BPVC Section VIII compliance available on request. State your code and we will confirm.
