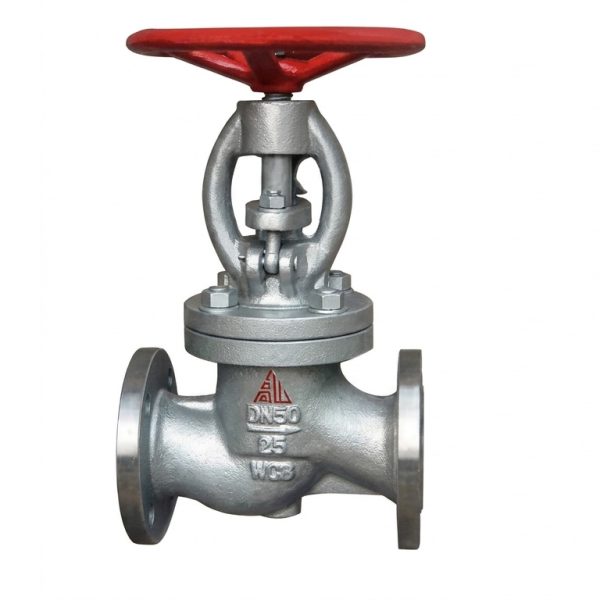

RJ41F Gas Globe Valve
- Product Model: RJ41F-25 Gas Globe Valve
- Pressure Rating: PN25 (2.5 MPa)
- Size Range: DN25 to DN200
- Applicable Media: Liquefied petroleum gas (LPG), natural gas, water, and oil products
- Max Temperature: ≤100℃
- Key Features: Anti-leakage, fire-safe design, self-compensating PTFE packing, low-torque operation
- Body Material: WCB carbon steel with 2Cr13 stainless steel stem
- Sealing System: Dual sealing with flexible graphite/PTFE packing and metal backup seal
- Applications: Gas distribution pipelines, petrochemical plants, and industrial systems requiring strict leak prevention
- Compliance: Designed to meet gas pipeline safety standards with reliable fire-resistant performance
Gaoshan Valve – RJ41F-25 Gas Globe Valve
Model: RJ41F-25 | Pressure Class: PN25 | Size Range: DN25~DN200
RJ41F-25 gas globe valve is specially designed for pipelines requiring strict anti-leakage and fire safety, suitable for liquefied petroleum gas, natural gas, water, and oil products. It features a fire-safe structure and self-compensating packing, ensuring reliable shut-off performance for critical gas systems.
✅ Core Strengths
- Anti-Leak & Fire-Safe Design: Features fire-resistant structure; even if soft sealing material burns out, the metal seal still works, ensuring pipeline safety.
- Self-Compensating PTFE Packing: Elastic PTFE packing provides self-sealing performance for zero external leakage under varying conditions.
- Reliable Dynamic Sealing: Large-diameter seal ring or inverted seal structure ensures safe and reliable sealing performance during operation.
- Corrosion & Dust Protection: Equipped with a stem dust-proof ring to protect internal components from external erosion.
- Durable Barrel-Style Body: High-strength barrel-shaped body design, compact structure, and beautiful appearance.
- Low-Torque Operation: Non-forced dynamic sealing structure reduces opening/closing torque for smooth handwheel operation.
📊 Performance Specifications
| Model | Nominal Pressure (MPa) | Shell Test Pressure (MPa) | Seal Test Pressure (MPa) | Max Working Temperature (℃) | Applicable Medium |
|---|---|---|---|---|---|
| RJ41F-25 | 2.5 | 3.8 | 2.8 | ≤100 | LPG, Natural Gas, Water, Oil |
🛠️ Main Component Materials
| Component | Material |
|---|---|
| Valve Body / Bonnet | WCB Carbon Steel |
| Stem | 2Cr13 Stainless Steel |
| Packing | Flexible Graphite / Elastic PTFE |
| Metal Sealing Surface | 2Cr13 Stainless Steel |
| Sealing Ring | PTFE |
📐 Dimensions & Installation Data (PN25)
| DN (mm) | Face-to-Face L (mm) | Valve Height H (mm) | Total Height H1 (mm) | Handwheel Dia. D0 (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 25 | 160 | 285 | 300 | 160 | 7.4 |
| 32 | 180 | 302 | 327 | 180 | 8.5 |
| 40 | 200 | 355 | 385 | 200 | 12.5 |
| 50 | 230 | 362 | 397 | 240 | 16 |
| 65 | 290 | 365 | 405 | 280 | 25 |
| 80 | 310 | 369 | 420 | 280 | 30 |
| 100 | 350 | 370 | 425 | 320 | 34.5 |
| 125 | 400 | 558 | 608 | 400 | 89 |
| 150 | 480 | 611 | 692 | 400 | 98 |
| 200 | 600 | 721 | 806 | 400 | 170 |
*Dimensions are for reference only. Contact us for complete drawings for your specific application.

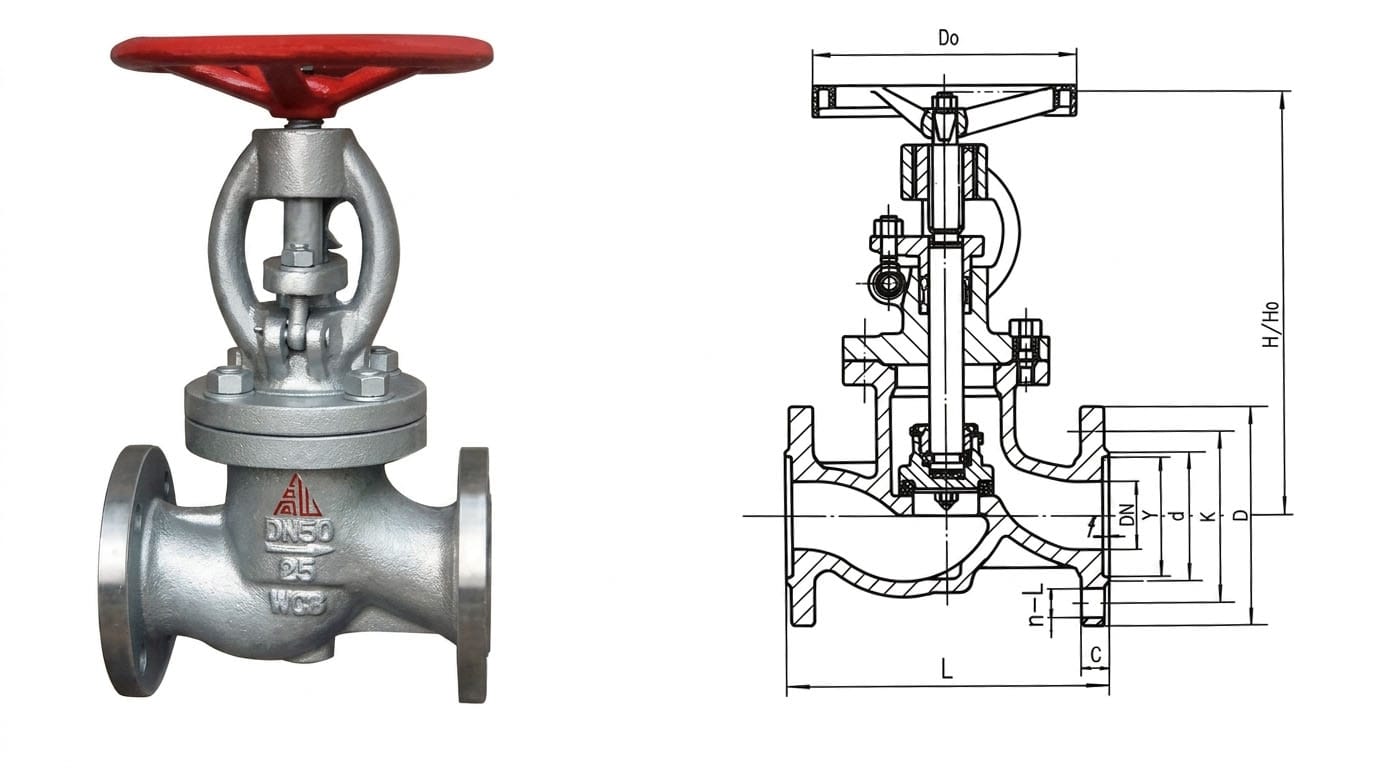

Product Image & Structure Drawing
📝 Design & Manufacturing Standards
- Manufactured in accordance with national and industrial standards for gas pipeline safety
- Designed for anti-leakage and fire-resistant applications per gas industry requirements
- Flange dimensions conform to GB/T 9113 standard
- Pressure testing performed in compliance with GB/T 13927 specification
⚙️ Installation & Maintenance Guidelines
- Installation Direction: Install according to the flow direction mark on the valve body.
- Pre-Installation Check: Clean the pipeline to remove debris that could damage the sealing surface.
- Sealing Maintenance: Periodically inspect packing and seals to prevent external leakage.
- Operation Notes: Avoid using excessive force when operating the handwheel to prevent damage to internal components.
Get Custom Quotation & Technical Support
Contact us for full dimension sheets, CAD drawings, and customized solutions for your gas pipeline project.
